1.5 Ton Light Stand Electric Pallet Stacker Truck 1500kg For Heavy Material Handling

Brand Name : JAC

Model Number : CDD15E

Certification : CE/SGS/ISO 9001/ISO 14001/SGS

Place of Origin : Hefei, China

MOQ : 1

Payment Terms : T/T

Supply Ability : 5000

Delivery Time : 8 work days

Rated traction weight : 1500kg

Power : electric

Battery : Lead-acid battery

Lowered hength : 86mm

Load centre : 600mm

Wheels type : PU

Lifting height : 1600/2600/2500/3200/3600/4000mm

Min.Turning radius : 1455mm

Width of forks : 570/695mm

Fork dimensions : 60/180/1150mm

Battery voltage : 24V

Battery rated capacity : 2*12/120Ah

Contact Now

1.5 Ton Light Stand Electric Pallet Stacker Truck 1500kg For Heavy Material Handling

Characteristics	1.1	Manufacturer		JAC
	1.2	Model		CDD15E
	1.3	Power unit		Electric
	1.4	Operation		Stand
	1.5	Rated traction weight	kg	1500
	1.6	Load center distance	mm	600
	1.7	Axle centre to fork face	mm	695
	1.8	Wheel base	mm	1148
	1.9	Load capacity on Max. height	kg	1500	1500	1350	1100	700
Weights	2.1	Service Weight	kg	620	690	720	730	740
Wheels/Tyres	3.1	Tires		PU
	3.2	Driving wheel size/number	Φ×w(mm)	Φ210×70
	3.3	Front wheel size/number	Φ×w(mm)	Φ80×70
	3.4	Balance wheel size/number	Φ×w(mm)	Φ115×55
	3.5	Wheels, number front/rear (x = driven)		1,4/2
	3.6	Drive end	mm	646
	3.7	Track width	mm	390/515
Dimensions	4.1	Lowered mast height	mm	2077	1877	2127	2327	2527
	4.2	Free lifting height	mm	0	0	0	0	0
	4.3	Lifting height	mm	1600	2600	3200	3600	4000
	4.4	The max. lifting height	mm	2077	3137	3687	4087	4487
	4.5	Height of handle in drive position	mm	1040/1415
	4.6	Lowered fork height	mm	86
	4.7	Overalllength	mm	1890
	4.8	Length to fork face	mm	740
	4.9	Overall width	mm	808
	4.10	Fork dimensions	s/e/l (mm)	60/180/1150
	4.11	Width of forks	mm	570/695
	4.12	Min.Ground clearance	mm	26
	4.13	Aisle width with pallet 1000 x 1200 across forks	mm	2110
	4.14	Aisle width with pallet 800 x 1200 along forks	mm	2160
	4.15	Min.Turning radius	mm	1455
Performance	5.1	Travel speed,laden/unladen	km/h	4.2/4.5
	5.2	Lifting speed, with/without load	mm/s	90/130
	5.3	Lowering speed, with/without load	mm/s	105/100
	5.4	Maximum climbing ability, with/without load	%	3/6
	5.5	Service brake		Electromagnetic
Drive	6.1	Drive motor, 60 minute rating	kW	0.75
	6.2	Lift motor rating at S3 15%	kW	2.2
	6.3	Battery voltage/rated capacity	V/Ah	2×12/120
	6.4	Battery weight (± 5%)	kg	2×35
other	7.1	Type of drive control		DC
other	7.2	Noise level at operator‘s ear	dB(A)	≤70

1.5 Ton Light Stand Electric Pallet Stacker Truck 1500kg For Heavy Material Handling

Product Tags:

1.5 ton Electric Pallet Stacker

Stand Electric Pallet Stacker

Stand electric stacker 1.5 ton

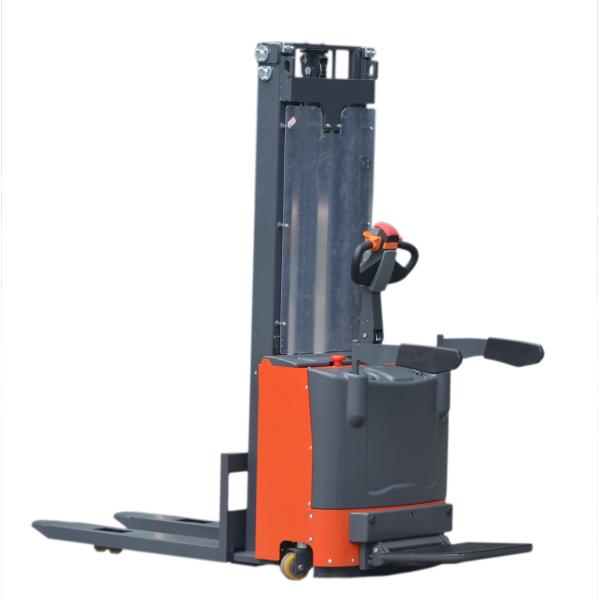

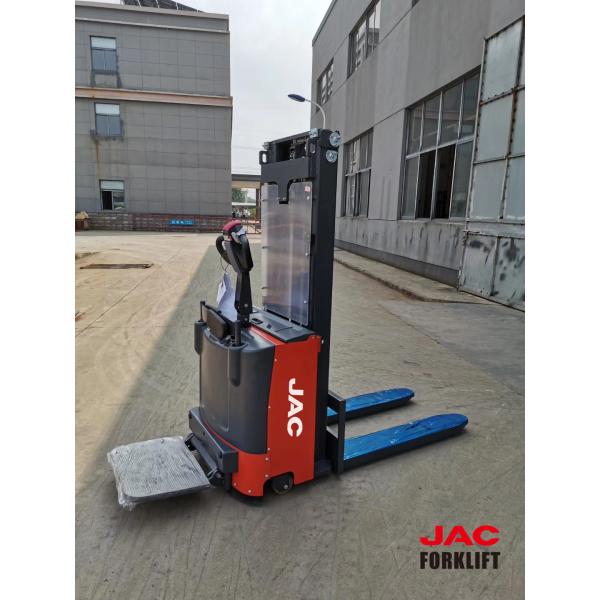

1.5 Ton Light Stand Electric Pallet Stacker Truck 1500kg For Heavy Material Handling Images
